1.Introduction
This is the manual for the integration between CCV Shop and Billit.
The integration ensures that orders or invoices from the CCV Shop webshop are processed to invoices in Billit. Because the orders or invoices enter the webshop owner's accounting system directly, it saves time on financial administration.
Please pay special attention to the following
- This integration is a financial integration. It is not a logistics integration. It is not suitable for updating customers in Billit, printing packing slips, or synchronizing products/inventory.
- This integration does not replace the work of an accountant. It saves time because you no longer have to retype documents. The accountant is still needed for advice, expertise, and control.
Tip: Other customers using this integration found the tips in the FAQ for CCV Shop and in the FAQ for Billit.
Install integration
You install this integration from the CCV Shop App Store. If you select the Accounting category, our apps will appear automatically. You can recognize us as a provider by the blue gear icon. If you click on the App, you will see a description and the Install App button. During activation, you will be automatically guided through the configuration screens.
The installation is complete when both connection dots are green, and the settings in the Configuration tab have been entered and saved.
Important: Once the integration is installed, always log in to the dashboard via https://uwkoppeling.webwinkelfacturen.nl, and not from the app store.
The trial period for the integration runs until the first of the following month in which the integration was requested.
If you want to install another integration, you can do so in the same way. Make sure you are logged out of the integration dashboard and preferably start the new installation in an incognito browser.
You install this integration from the CCV Shop App Store. If you select the Accounting category, our apps will appear automatically. You can recognize us as a provider by the blue gear icon. If you click on the App, you will see a description and the Install App button. During activation, you will be automatically guided through the configuration screens.
The installation is complete when both connection dots are green, and the settings in the Configuration tab have been entered and saved.
Important: Once the integration is installed, always log in to the dashboard via https://uwkoppeling.webwinkelfacturen.nl, and not from the app store.
The trial period for the integration runs until the first of the following month in which the integration was requested.
If you want to install another integration, you can do so in the same way. Make sure you are logged out of the integration dashboard and preferably start the new installation in an incognito browser.
Cancel integration
If you want to terminate the integration, you can remove the app from the app store in your backend.
Are you switching to another accounting system and want to create a new integration? You can install the new app from the app store in your backend. Make sure you are logged out of the dashboard of the old integration and preferably start the new installation in an incognito browser.
Are you switching to another webshop system? Via our integrations page you can see whether you install it from the relevant app store, or by means of an installation link.
Has the installation been successful, but do you see in the dashboard of the integration the old license key still present when you click the dropdown arrow next to the key (even though that app/key has been deleted)? If so, please send us an email requesting that the old key be removed.
If you want to terminate the integration, you can remove the app from the app store in your backend.
Are you switching to another accounting system and want to create a new integration? You can install the new app from the app store in your backend. Make sure you are logged out of the dashboard of the old integration and preferably start the new installation in an incognito browser.
Are you switching to another webshop system? Via our integrations page you can see whether you install it from the relevant app store, or by means of an installation link.
Has the installation been successful, but do you see in the dashboard of the integration the old license key still present when you click the dropdown arrow next to the key (even though that app/key has been deleted)? If so, please send us an email requesting that the old key be removed.
2.How the integration works
An order or invoice from the CCV Shop webshop is processed to an Billit invoice. It is possible to ensure that the Billit invoices refer to a product in Billit. We call this posting to products. This can be requested via webcare@webwinkelfacturen.nl.
The integration works with webhooks from the CCV Shop webshop. Processing can be done in two ways, namely based on paid orders or invoices. The advantage of the option paid orders is that orders that are not paid do not enter the accounting system. With this option, however, credit notes are not included. With the option invoices all invoices are processed to Billit, so both debit and credit invoices. You can set the preference for paid orders or invoices via the Configuration tab of the dashboard. See this FAQ for more information.
Read more How the integration works .... Read less How the integration works ....
Read more How the integration works .... Read less How the integration works ....
Pre-check orders or invoices
At the start of processing an order, we perform a number of checks on the CCV Shop order or invoice:
At the start of processing an order, we perform a number of checks on the CCV Shop order or invoice:
- It is checked whether the total of the CCV Shop order is equal to the sum of the amounts in the order lines plus the shipping cost amount.
- If the order is an ICP order, the VAT number is checked.
- It is checked whether a corresponding VAT code exists in Billit for the VAT in each line.
- It is checked whether the order or invoice has not already been processed.
Processing orders or invoices
Upon a successful check, the Billit invoice is created and processed to Billit. The debtor data is placed in the Billit invoice. Billit itself checks if the debtor is already present. One can choose to also add the products from the order or invoice. This option can be requested from us.
Upon a successful check, the Billit invoice is created and processed to Billit. The debtor data is placed in the Billit invoice. Billit itself checks if the debtor is already present. One can choose to also add the products from the order or invoice. This option can be requested from us.
Post-check
After the order or invoice has been forwarded and a success message from Billit has been received, the order or invoice is marked as handled. The CCV Shop order appears at the Reporting tab on the dashboard.
If Billit returns an error while processing the order or invoice, the order or invoice appears in the Errors tab on the dashboard. Via the yellow button More info more information about the problem can be found. Via the red button Report problem can the order or invoice with all necessary information easily be submitted to us after you have tried to resolve the problem yourself. If the problem is solved, in some cases the orders or invoices can be processed again with the blue Process button.
Data
Information about the data that is processed can be found in the section Day-to-day: To Billit later in the manual.
After the order or invoice has been forwarded and a success message from Billit has been received, the order or invoice is marked as handled. The CCV Shop order appears at the Reporting tab on the dashboard.
If Billit returns an error while processing the order or invoice, the order or invoice appears in the Errors tab on the dashboard. Via the yellow button More info more information about the problem can be found. Via the red button Report problem can the order or invoice with all necessary information easily be submitted to us after you have tried to resolve the problem yourself. If the problem is solved, in some cases the orders or invoices can be processed again with the blue Process button.
Data
Information about the data that is processed can be found in the section Day-to-day: To Billit later in the manual.
3.Installation
After installation, check using this FAQ, whether the integration works.

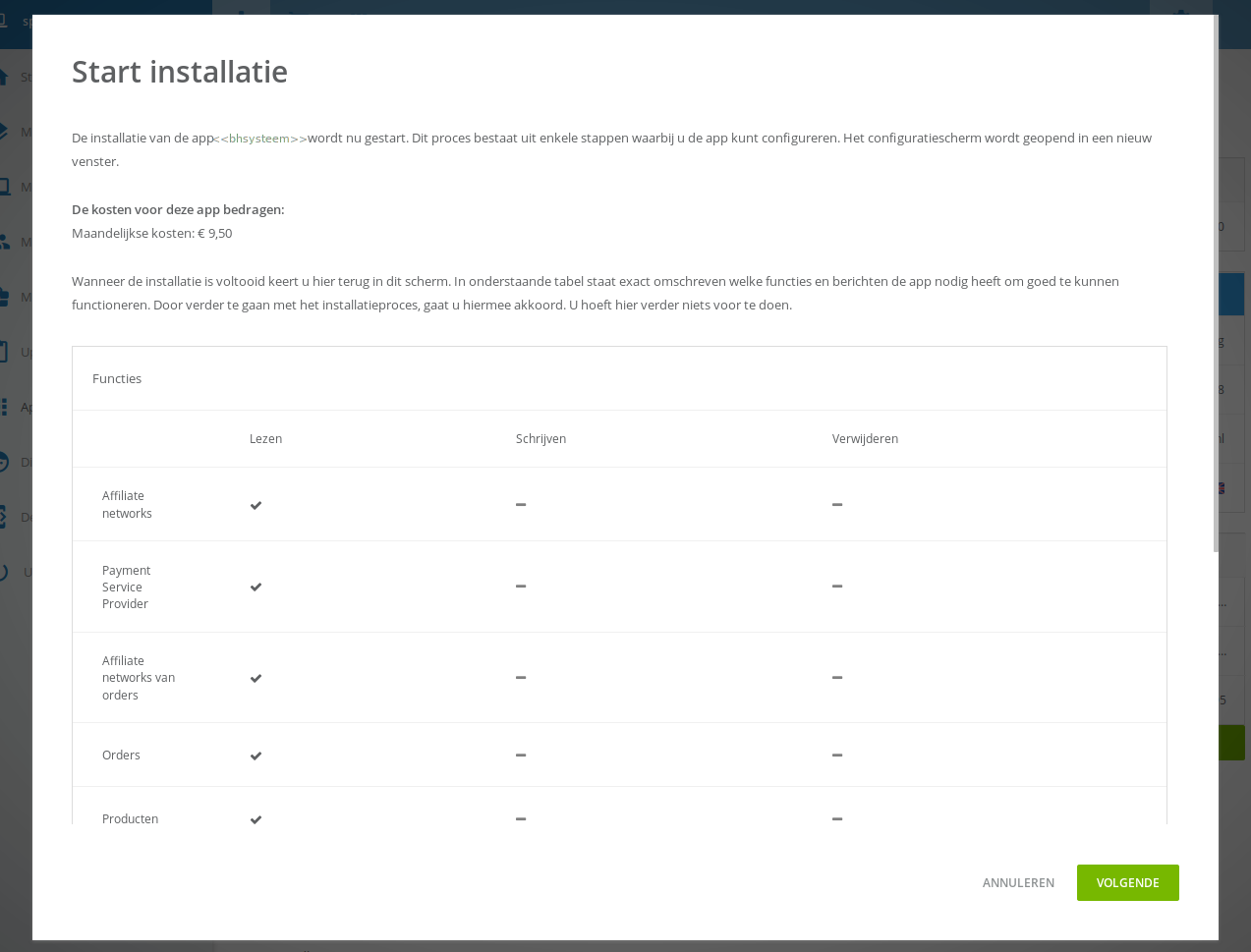

You install the integration between CCV Shop and billit via the CCV Shop App Store. First, the connection with your webshop is established and you authorize the integration to read data from your webshop. Explanation is provided in the Install integration section in chapter 1.
Read more Installation ....Read less Installation ....
Activating the integration now continues with:
1. Establishing the connection with Billit. This authorizes the integration to write transactions to your Billit administration and to read information.
2. Configuring additional data, such as the VAT settings.
1. Establishing the connection with Billit. This authorizes the integration to write transactions to your Billit administration and to read information.
2. Configuring additional data, such as the VAT settings.
Before the integration can be used, the terms and conditions must first be accepted. The terms and conditions are based on the general ICT Terms and Conditions (industry organization) and the general GDPR guidelines.
Authentication Billit
The authentication with Billit runs via OAuth. Make sure you are logged out of Billit before starting the connection. You now click on the red Connect button. A login screen for your Billit account will automatically appear. When you log in, you will get a screen asking if you allow the connection. If you confirm this, the connection with Billit is established.
If you want to re-establish the connection at a later moment, you can always do so by clicking the Connect button.
Invoice layout Billit
It is possible to link an invoice layout to the invoice in Billit. At this moment, the templateID of the layout must be entered. At a later stage, the integration will show a list of available invoice layouts. This functionality is under development.
Payment status Billit
It is possible to provide the payment status to Billit invoices. The options are always set to paid, never set to paid, or set to paid depending on the status in the webshop. If you choose the last option, it concerns the payment status at the time of processing. If the payment status in the webshop changes at a later moment, the invoice in Billit will not be updated.
Configure VAT rates and general ledger accounts
When processing to the Billit accounting system, the VAT percentages are transferred directly. Therefore, there is no possibility to post to separate VAT codes or ledger accounts.
When processing to the Billit accounting system, the VAT percentages are transferred directly. Therefore, there is no possibility to post to separate VAT codes or ledger accounts.
4.Day-to-day: From CCV Shop
Processing schedule: The integration works with webhooks. The integration receives a message as soon as an order is paid or changes status. Depending on the settings for processing the order, the order will be retrieved and processed. If you have chosen to process CCV Shop invoices, the integration receives a message as soon as an invoice is created in CCV Shop. Invoices are always processed immediately, regardless of the status.
Once an order or invoice has been processed, it cannot be processed again. An order or invoice that is modified in the webshop after it has been processed will not be adjusted in Billit.
Once an order or invoice has been processed, it cannot be processed again. An order or invoice that is modified in the webshop after it has been processed will not be adjusted in Billit.
Field-level specification orders
Specification CCV Shop order. +-
| Below is an elaboration at field level when retrieving orders. The general values in the order and the order rules are discussed, the shipping costs and the debtor details. | ||
| Name field | Values from CCV Shop order | |
| Order-identifier | [id] | |
| Order number and reference | [ordernumber_full] | |
| Order and booking date | [create_date] | |
| ICP indication | [is_intra_community_order] | |
| International indication |
An order is an international order if:
|
|
| Valuta | [currency] | |
| Payment status | [paid] | |
| Payment method |
The payment method is determined as follows based on the field [paymethod]:
|
|
| Paymentmethod-id | [paymethod_id] | |
| Total amounts incl or excl VAT | The amounts in the order can be incl. or excl. VAT. This is determined by the field [taxes_included]. This value is important for determining the Total incl and the Total excl, see below. | |
| Total incl | The amount incl. VAT of the order is:
|
|
| Total excl | The amount excl. VAT of the order is:
|
|
| Total VAT | [total_tax] | |
| Total discounts incl or excl VAT | The amounts in the order can be incl. or excl. VAT. This is determined by the field [order_row_taxes_included] | |
| Total discounts incl. | The amounts are calculated depending on the field [order_row_taxes_included]. This value is important for determining Total discounts incl. and the Total discounts excl., see below.
|
|
| Total discounts excl. | The amounts are calculated depending on the field [order_row_taxes_included]:
|
|
Specification CCV Shop order lines +-
| Name field | Values from CCV Shop order |
| VAT percentage | [tax], if the amount < 1 is dan wordt het percentage vermenigvuldigd met 100 |
| Name product | [product_name] |
| Productcode | If filled [sub_product_number], otherwise [product_number] |
| Amount | [count] |
| Discount | ([price_without_discount] - [selling_price]) * [count] |
| Amounts incl. or excl. VAT | The amounts in the order lines can be incl. or excl. VAT. This is determined by the field [order_row_taxes_included]. This value is important for determining the unit prices incl. and the unit prices excl., see below |
| Unit price excl. VAT | The unit price excl. VAT is:
|
| Unit price incl. VAT | The unit price incl. VAT is:
|
| Line prices incl and excl discount | These are calculated from the discount and the unit prices. The unit prices are multiplied by the quantity. |
| Accounts and VAT codes from Billit | These are determined based on the settings in the integration, the delivery country of the order and the VAT percentages. The type for order lines is turnover / revenue. |
Specification CCV Shop shipping costs+-
| Name field | Values from CCV Shop order |
| Name | Shipping costs |
| VAT percentage | For ICP and international orders 0%, otherwise [shipping_tax_percentage] |
| Shipping costs incl. or excl. VAT | The shipping costs are given incl. or excl. VAT. This is determined by the field [order_row_taxes_included]. This value is important for determining the shipping costs incl. and excl. VAT, see below |
| Shipping costs excl VAT | Shipping costs excl. VAT are:
|
| Shipping costs incl VAT | Shipping costs incl. VAT are:
|
| Accounts and VAT codes from Billit | These are determined based on the settings in the integration, the delivery country of the order and the VAT percentages. The type for shipping costs is shipping / shipping costs. |
Specification CCV Shop payment costs+-
| Name field | Values from CCV Shop order |
| Name | Payment costs |
| VAT percentage | For orders For ICP and international orders and a margin sale 0%, otherwise the highest percentage for the delivery country.
For invoices The VAT percentage on the shipping costs is used, because there is no VAT percentage on the payment costs. For example, 21% may be used for the Netherlands, 19% for Germany, and 20% for France. |
| Payment costs incl and excl VAT | Sum of the amounts in [paymethod_costs] and [extra_payment_option_price]. Just like for calculating the amounts in the order lines and for the shipping costs, the field [order_row_taxes_included] is used for the payment costs incl. and excl. VAT |
| Accounts and VAT codes from Billit | These are determined based on the settings in the integration, the delivery country of the order and the VAT percentages. The type for payment costs is payment / payment costs. |
Specification CCV Shop surcharges +-
|
There are two types of surcharges retrieved from the order. The surcharge with field name [extra_costs] and the surcharge with field name [credit_point_discount]. This results in a maximum of 2 surcharge lines. |
|
| Name field | Values from CCV Shop order |
| Name | Extra [extra_costs_description] or Surcharge |
| VAT percentage | For ICP and international orders 0%, in all other cases the highest VAT percentage in the order lines is used. |
| Surcharge amounts incl. and excl. VAT | Amounts in [extra_costs] and [credit_point_discount]. Just like for calculating the amounts in the order lines and for the shipping costs, the field [order_row_taxes_included] used for the surcharges incl. and excl. VAT |
| Accounts and VAT codes from Billit | These are determined based on the settings in the integration, the delivery country of the order and the VAT percentages. The type for order lines is turnover / revenue. |
Specification CCV Shop customer+-
| Name field | Values from CCV Shop order |
| First name | [billingaddress][first_name] |
| Last name | [billingaddress][last_name] |
| First name | [billingaddress][first_name] |
| Company name | [billingaddress][company] |
| Phone number | [billingaddress][telephone] |
| Chamber of Commerce number | [billingaddress][kvk] |
| Address line 1 | [billingaddress][street] |
| Address line 2 | [billingaddress][address_line_2] |
| House number | [billingaddress][housenumber] [billingaddress][housenumber_suffix] |
| Zip code | [billingaddress][zipcode] |
| City | [billingaddress][city] |
| Country | [billingaddress][country_code] |
| Shipping address | Same as for the billing address, but now with [deliveryaddress] instead of [billingaddress] |
| VAT number | [vatnumber] - this is checked for correctness |
| Emailaddress | [email] |
Field-level specification invoices
Specification CCV Shop invoice.+-
| Below is an elaboration at field level for retrieving invoices. Please note, a credit invoice is also an invoice and will be retrieved in the same way as debit invoices. | |
| Name field | Values from CCV Shop order |
| Invoice-identifier | [id] |
| Invoice number and reference | [invoicenumber_full] |
| Order-identifier | This is determined based on the URL in the field [order] |
| Invoice and entry date | [create_date] |
| ICP indication | [is_intra_community_order] |
| International indication |
An order is an international order if:
|
| Valuta | [currency] |
| Payment method |
The payment method is determined as follows based on the field [paymethod]:
|
| Paymentmethod-id | [paymethod_id] |
| Total amounts incl or excl VAT | The amounts in the order can be incl. or excl. VAT. This is determined by the field [taxes_included]. This value is important for determining the Total incl and the Total excl, see below. |
| Total incl | The amount incl. VAT of the order is:
|
| Total excl | The amount excl. VAT of the order is:
|
| Total VAT | [total_tax] |
| Total discounts incl or excl VAT | The amounts in the order can be incl. or excl. VAT. This is determined by the field [order_row_taxes_included] |
Specification CCV Shop invoice lines +-
| Name field | Values from CCV Shop order |
| VAT percentage | [tax], if the amount < 1 is dan wordt het percentage vermenigvuldigd met 100 |
| Name product | [product_name] |
| Productcode | If filled [sub_product_number], otherwise [product_number] |
| Amount | [count] |
| Discount | ([price_without_discount_with_attributes] - [price_without_discount_with_attributes]) * [count] |
| Amounts incl. or excl. VAT | The amounts in the invoice lines can be incl. or excl. VAT. This is determined by the field [invoice_row_taxes_included]. This value is important for determining the unit prices incl. and the unit prices excl., see below |
| Unit price excl. VAT | The unit price excl. VAT is:
|
| Unit price incl. VAT | The unit price incl. VAT is:
|
| Line prices incl and excl discount | These are calculated from the discount and the unit prices. The unit prices are multiplied by the quantity. |
| The shipping costs are added as a separate invoice line | The amounts are determined based on [total_shipping], [shipping_tax_percentage] and [invoice_row_taxes_included] as in other lines. This line is only added for an amount other than 0. |
| The payment costs are added as a separate invoice line | The amounts are determined based on [paymethod_costs], [extra_payment_option_price] and [invoice_row_taxes_included] as in other lines. This line is only added for an amount other than 0. |
| The surcharges are added as separate lines to the invoice | The amounts are determined based on [extra_costs], [credit_point_discount], [invoice_row_taxes_included] as in other lines. The amount is only added for an amount other than 0. This leads to a maximum of 2 extra lines. |
| Accounts and VAT codes from Billit | These are determined based on the settings in the integration, the delivery country of the invoice and the VAT percentages. The type for invoice lines is turnover / revenue, for the shipping costs line shipping / shipping costs and payment costs payment / payment costs. |
5.Day-to-day: To Billit
Below is the creation of new Billit invoices elaborated at field level. It is possible to post to products in the Billit invoice. We then include the Billit product ID in the invoice. You can request this via webcare@webwinkelfacturen.nl stating your license key.
Field-level specification Billit
Creating invoices
When creating invoices, the customer information is placed in the invoice. Therefore, no separate customer is created. Billit handles the matching of the debtor data with already existing debtors in Billit itself.
Create debtor
When processing customer information, all data is provided in the sales transaction and Billit will process it further.
When processing customer information, all data is provided in the sales transaction and Billit will process it further.
Create products
Products are only created if this is configured in your contract. The integration first checks whether the products from the order or invoice already exist in Billit. If not, the integration adds the missing products. The rules for matching products between CCV Shop and Billit can be found in this FAQ read here.
Regarding VAT, the integration follows the VAT percentage in the order or invoice.
Automatically sending invoices
The integration creates the invoice in Billit, but will not automatically send the invoice to the debtor. It is possible to set an invoice layout. This can be done via the dashboard https://uwkoppeling.webwinkelfacturen.nl, tab Configuration.
The integration creates the invoice in Billit, but will not automatically send the invoice to the debtor. It is possible to set an invoice layout. This can be done via the dashboard https://uwkoppeling.webwinkelfacturen.nl, tab Configuration.
Field-level specification Billit
Field-level specification of the Billit invoice. +-
| Name | Example | Note |
| OrderDate | 2022-12-02T20:23:29+01:00 | order/invoice date |
| ExpiryDate | 2022-12-16T20:23:29 | order/invoice date + 14 days - the 14 days is not adjustable. |
| OrderType | Invoice | Type, in case of negative order or invoice Credit invoice. |
| OrderTitle | 1050 | Order number, upon request order or invoice number |
| OrderDirection | Income | |
| TotalExcl | 97.98 | Quantity * unit prices excl. VAT |
| TotalIncl | 103.85 | Quantity * unit prices incl. VAT |
| TotalVat | 5.87 | VAT |
| PaymentReference | 1050 | Order number |
| Created | 2023-01-20 | current date |
| Invoice lines | ||
| Quantity | 2 | Amount |
| Description | Monthly settings check | Description |
| VATPercentage | 6.00 | VAT percentage |
| UnitPriceExcl | 20.7075 | Unit prices excl. VAT |
| UnitPriceIncl | 21.9500 | Unit prices incl. VAT |
| TotalExcl | 41.4151 | Quantity * unit prices excl. VAT |
| TotalIncl | 43.9000 | Quantity * unit prices incl. VAT |
| TotalVAT | 2.4849 | VAT |
| Currency | EUR | The currency of the order or invoice. This option is disabled by default. You can contact us if you would like to use this feature. |
| InclLeading | true | Including VAT leading, this is not adjustable. |
| Product-id | Product identifier from Billit | Only if configured that products should be processed. |
| Customer | ||
| First name | Sophie | |
| Last name | Fischer | |
| Address | Stationstraat | |
| House number | 12 | |
| Postal code | 1000AA | |
| City | Amsterdam | |
| CountryCode | NL | |
| info@sponiza.nl | ||
| Phone number | 31623138822 | |
| Name | Sophie Fischer | Company name if present, otherwise first and last name. |
| Invoice shipping address - please note, the shipping address is an additional address for the customer in Billit | ||
| Address type | DeliveryAddress | |
| Name | Marietje Geuze | |
| Address | Heesterstraat | |
| House number | 1 | |
| Postal code | 3512KL | |
| City | Utrecht | |
| CountryCode | NL | |
| Paid | 1 | |
Field-level specification of the Billit product. +-
| Name | Example | Note |
| Reference | [Reference] | The reference of the product in Billit. This reference is available after we have retrieved or potentially added the product. |
| Description | [Description] | |
| Price excl. VAT | [unitpriceExcl] | |
| Product VAT | [VAT] | |
| Amount incl. VAT | [unitpriceIncl] | |
| Created | Current date | |
| Last modified | Current date |
6.Support
We believe it is important that you as online retailer have direct access to information about the integration whenever you want. That is why every customer has a personal dashboard.
Read more Support .... Read less Support ....
Read more Support .... Read less Support ....
Explanation tabs dashboard
On the Dashboard >> Report you can see which orders or invoices from your CCV Shop webshop, and when, have been transferred to Billit.At Dashboard >> Errors you can see which orders or invoices have not been processed. Via the blue Process button you can (re)submit the order or invoice. Via the red Report problem button you can create a ticket with us.
At Dashboard >> Open the orders or invoices are listed that have not yet been processed because they do not yet have the correct status in the webshop. Every night jobs run to review the status again and still process the order or invoice.
At Dashboard >> Configuration the settings of your integration are listed. You can adjust the settings there.
At Dashboard >> Profile invoices are available for download. You can also specify an additional email address here for sending emails and stop the integration.
What if orders or invoices are missing in Billit
If orders or invoices are missing in Billit we recommend following the steps below:- Log in to the dashboard: https://uwkoppeling.webwinkelfacturen.nl. The username and password are included in the registration email.
- Go to the Errors tab and check if order or invoice is there. You may need to adjust the search period if the
order or invoice is from a previous month. If you find order or invoice in this overview:
- Check the error code and verify whether you can resolve it yourself.
- If yes resolve the issue and click the blue Process button to resubmit the order or invoice.
- If not use the red Report problem button to create a ticket with us.
- Note if there are multiple errors, please create only 1 or 2 tickets. We will automatically see the other issues.
- Go to the Report tab and see if order or invoice is listed there. If so, you'll often see an identifier for Billit (in the purple section of the overview) that you can use to search for order or invoice.
- Go to the Open tab and check if order or invoice is there.
- If you cannot resolve the issue, you can always create a ticket via the green Ask us button.
You can send any other questions or comments to webcare@webwinkelfacturen.nl. For a quick response, please always include the license key and as much information as possible. If you encounter any problems during installation, please let us know where you're experiencing the issue. And if there's an error message, please include that as well. If you think orders or invoices is missing, please provide the number and date. This way, we can perform a more targeted search and tell you what's wrong.
We have an extensive FAQ-section on the website. Pay particular attention to these sections: https://faq.webwinkelfacturen.nl/category/6/ccv-shop.html and https://faq.webwinkelfacturen.nl/category/46/billit.html.
Would you prefer us to perform the installation of the integration for you? That is possible. Send an email to webcare@webwinkelfacturen.nl with the request. We charge €39.50 excl. VAT for an installation. For installations we require access to the webshop and the accounting system.
We can perform migrations for orders or invoices that took place in the past. The request procedure and method are described in this faq. For migrations we charge €67.50 excl. VAT per 1000 orders or invoices.
